AC Smart OCPP Twins

Floor Dual EV Charger

Floor Dual EV Charger is a three phase dual gun/Socket AC charging station, packed with features and ideal for domestic and commercial use.

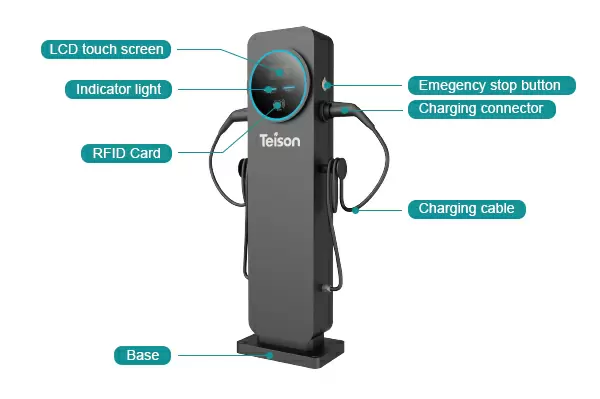

Product features

5 inch HD touch screen

Easiest user interaction and real-time status view

RFID Sensor

Identification & payment solution

Indicator light

Showing real time wallbox status

Emergency button

Press to cut off the power immediately

TPU cable

4meter cable with excellent durability and top cold resistance at-30°C

TUV approved connector

Completed shaped and easy hold; Silver plated terminals to minimize wear and tear on EV charging socket2

Designed for future smart charging network

– Internet connection automatically setting with best logic to save 4G save cost;

– OCPP1.6 full function, supporting unified management through Teison OCPP Platform;

– Have a full logic written software to meet load balance of all type of applications for private and commercial;

– Remote charger conditions track and check platforms, can also remote update software or fix the faults occurred;

– Backend charger payment managing system available with fully settled functions and designs, RFID/credit card through Paypal or Stripe via APP “My Teison”.

Highlights

– Power Capacity: 2*11KW/2*22KW

– 4.5M TPU Charging Cable(Customizable)

– 5″ LCD Touch Screen

– Integrated with Ethernet/Wifi/RFID (4G as optional)

– With built-in MID Certificated Meter

– RCD AC30mA +DC6mA

– Protection Level: IP55

3phase, 2*11KW/2*22KW
MyTeison App Control (Wi-Fi, Ethernet, 4G)
RFID Card with Stored-Value Capability
OCPP1.6J
Local Whitelist (Offline RFID Card Swiping)
Support for Teison Platform Full Features
Dual Output

Parameter

Specification
Model	TS-EVC11-002C-002	TS-EVC11-002C-002S	TS-EVC22-002C-002	TS-EVC22-002C-002S
Electrical Properties
Rated Voltage	380V±10% AC
Max Output Current	2*16A		2*32A
Frequency	50/60HZ
Max Output Power	2*11kW		2*22kW
Design
Emergency Stop Button	YES
Display	LCD touch screen
Status Indication	LED status indicator
RFID Function	YES
Energy Meter	On board power meter Optional: MID Power meter
RCD	30mA AC + DC 6mA
Housing Material	SPCC Carbon steel
Front Panel	PC
Installation Method	Floor-stand
Network Gateway	LAN Optional: 4G / Wifi
Communication Protocol	OCPP1.6(JSON)
Safety Standard	EN IEC 61851-1:2019; IEC 61851-1:2017; EN IEC 61851-21-2:2021; EN IEC 61000-6-1:2019; EN IEC 61000-6-2:2019; EN IEC 61000-6-3:2021; EN IEC 61000-6-4:2019; ETSI EN 300 328 V2.2.2:2019; ETSI EN 300 330 V2.1.1:2017; ETSI EN 301 489-1 V2.2.3:2019; ETSI EN 301 489-3 V2.1.1:2019; ETSI EN 301 489-17 V3.2.4:2020; EN IEC 62311:2020
Warranty	2 years
Environmental Performance
Protection Level	IP55
Temperature/Humidity	﹣30~50℃/5%~95% without condensation
Working Altitude	＜2000M
Application Site	Indoor/Outdoor
Packing Details
Product Size	3602001510 (mm)
Base Size	460*300 (mm)
Optional Configure
Energy Meter	MID certified
Network Cateway	Ethernet/4G
