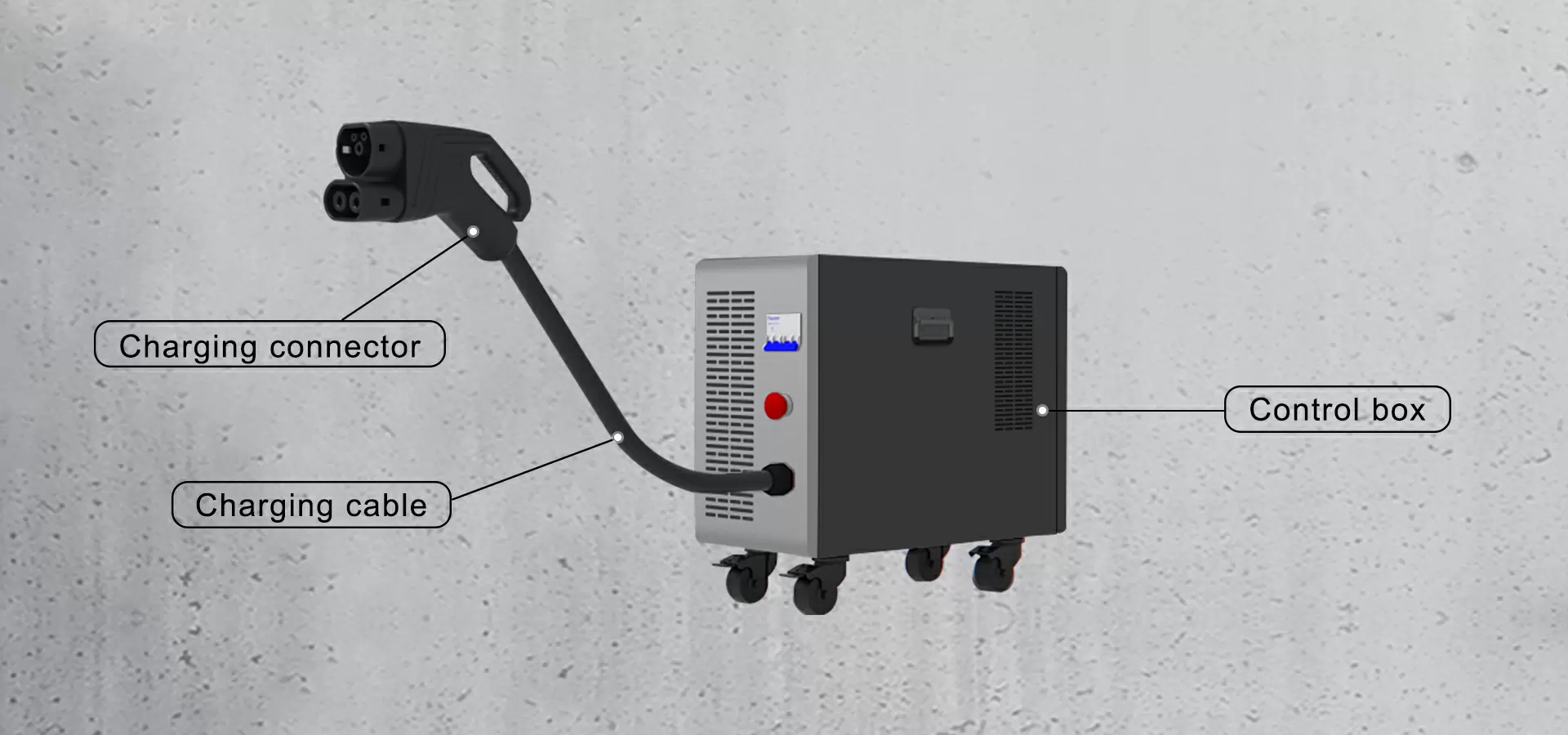

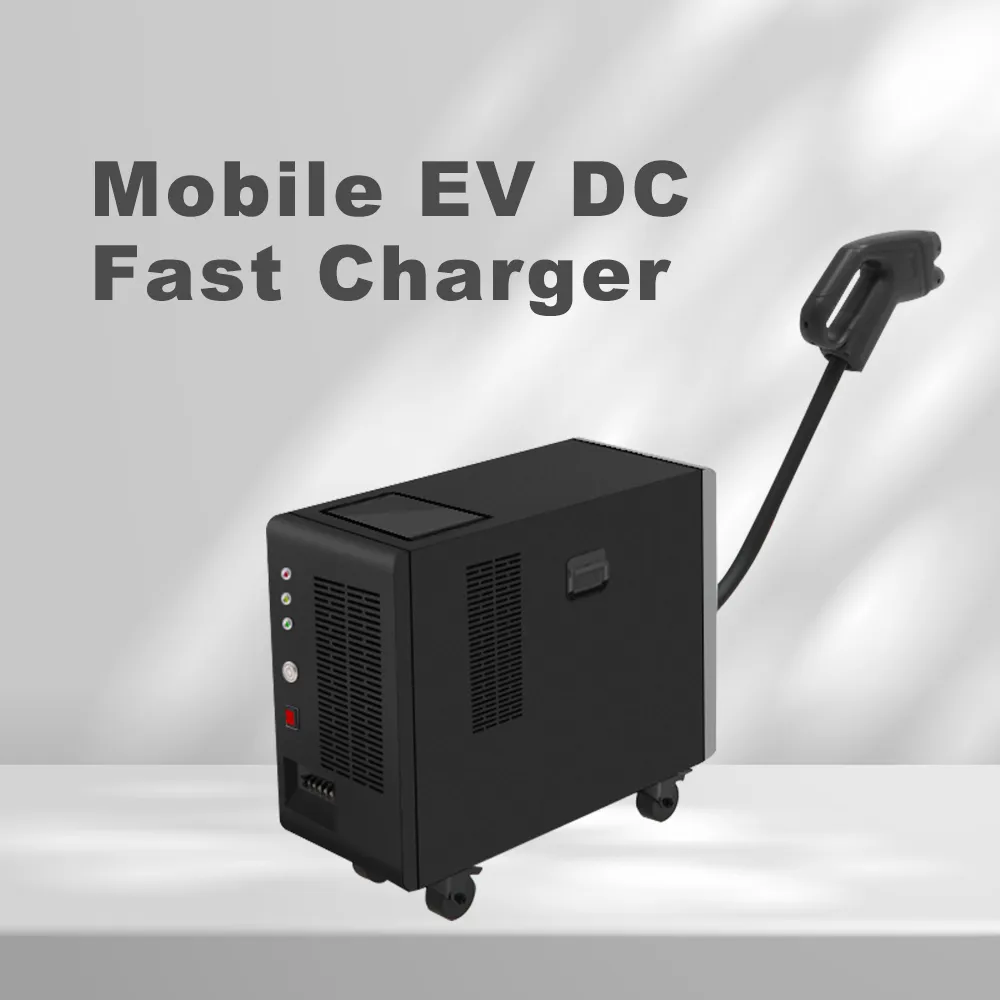

60kW Portable DC Fast Charger

Teison Portable DC Fast Charger is meant to quickly and simply charge electric vehicles, including the one equipped with high-voltage battery systems. The portable DC fast charger series’ performance makes it very suitable for personal and little fleets, and its latest modular design 2.0 (new modular starts from 30kW) can increase the charging power to 60kW, which is above the previous generation. The upgraded unit basic power efficiency DC fast charger can support plug hot-swapping technology, to satisfy the charging needs of vehicles with different standards.

FEATURES/ADVANTAGES

FEATURES

Built-in safety measures
User friendly interface
Flexible multi-protocol design
CHAdeMO and CCS protocol compatible
Durable enclosure
Wide temperature range: -25ºC to +65ºC
Data management and metering options

APPLICATIONS

Service station operators
Public corridor charging along the highways
Busy urban areas
Commercial fleet operators
EV Infrastructure operators and EVSE providers

Parameter

SYSTEMTypeDC fast-charging station
BMS CommunicationCAN2.0[CHAdeMO]/PLC [Combo]
Charging PlugsCHAdeMO and CCS
Cooling MethodForced Ventilation
Display10.1′ inch LCD Touch Screen
Operating temperature-25℃ to +65℃
Storage temperature-40℃ to +70℃
Relative humidity20% to 95%
EnvironmentIndoor/Outdoor(IP31,not waterproof)
INPUTAC power connection3P + PE
Input voltage range305-520 VAC (3 phase)
Frequency40-65HZ
Power factor0.99
Current THD≤5%
Input under-voltage protectionYes
OUTPUTOutput voltage150-1000Vdc
Output current100A / 200A (Max)
Output power30kW/60kW
Output over-current protectionYes
Output short-circuit protectionYes
GENERALProtection degreeIP31
